Orifice Primary Flow
Orifice flow elements offer reliable, cost-effective measurement for liquids, gases, and steam. Simple, robust, and easy to install, these solutions are ideal for industrial pipelines and utilities seeking accuracy without added complexity. Eleven57’s expertise ensures seamless integration and ongoing support, empowering your projects to meet global energy standards.
XXX
Weld-in orifice flange assembly complete with plate and taps, offering a ready-to-install flow measurement section that simplifies on-site fitting and ensures long-term alignment of pressure tappings.
Starting from:
$0.00
XX
Flat orifice plate primary elements (various profiles) for differential pressure flow measurement, selected according to fluid type and desired accuracy.
Starting from:
$0.00
FPD170
Orifice plate assembly with integral tap carrier, allowing quicker installation and ensuring accurate tap alignment for dependable DP flow measurement.
Starting from:
$0.00

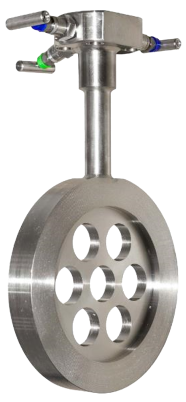

FPD175
All-in-one orifice flowmeter (carrier plus manifold) enabling direct transmitter mounting – simplifying installation and reducing potential leakage or misalignment in differential pressure flow measurements.
The McMenon FPD175 Orifice Plate Flow Meter is a versatile and cost-effective flow measurement solution designed for liquids, gases, and steam applications. This compact orifice carrier assembly integrates an orifice plate, manifold, and optional temperature sensor in a single, space-saving unit, reducing installation costs and simplifying maintenance. Available in both concentric and conditioning plate configurations, it offers enhanced accuracy, reduced straight pipe requirements, and significant pressure recovery. With integral mounting for DP transmitters, compatibility with ASME and DIN flanges, and optional remote mounting kits for high-temperature applications, the FPD175 is engineered for reliable performance and long-term durability in demanding industrial environments.
