FAM32
Armored-Metal Rotameter FAM3255
Armored Variable Area Flowmeter
Starting from:
$890.00
Categories:
Simple and Versatile….

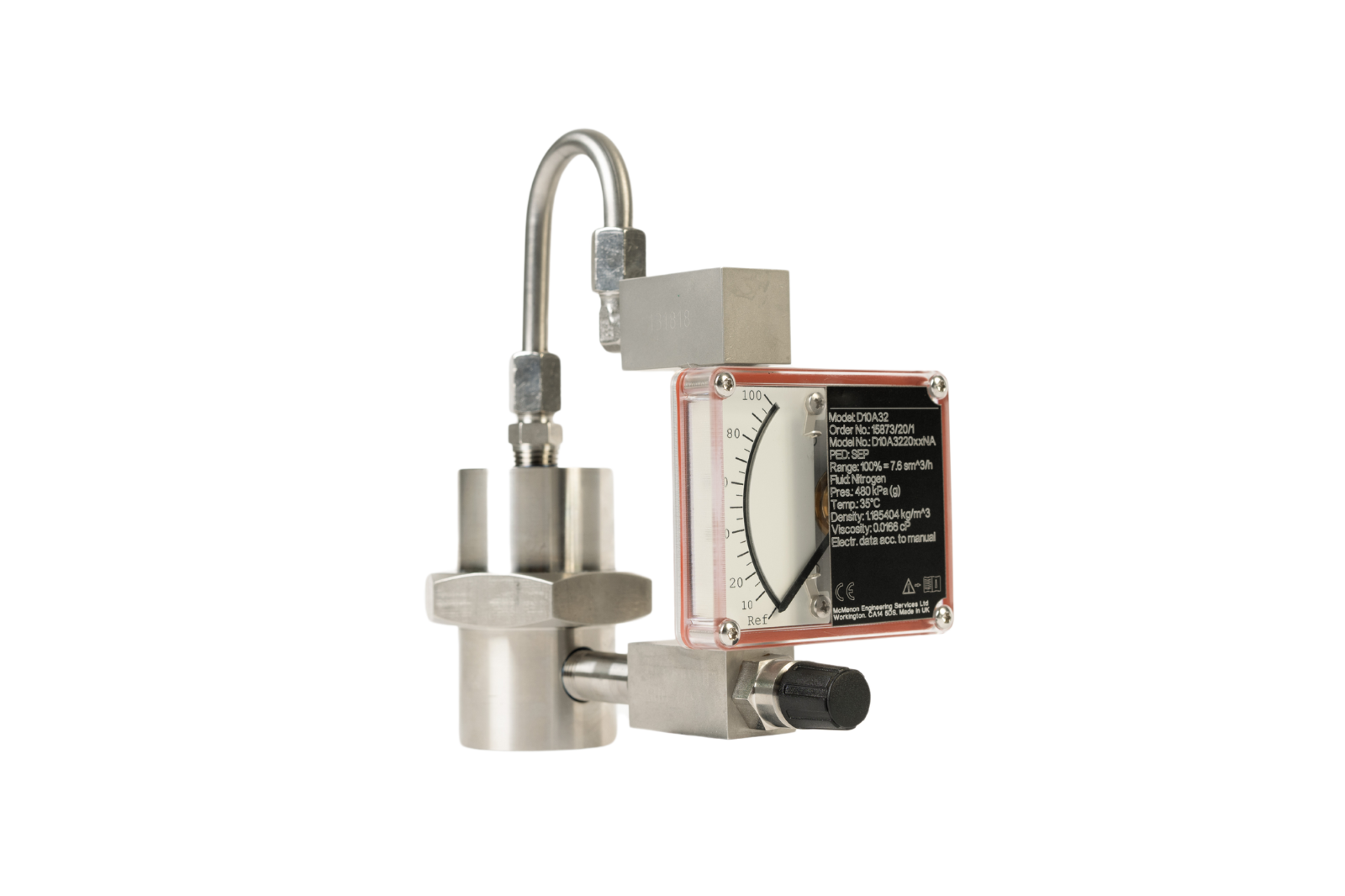

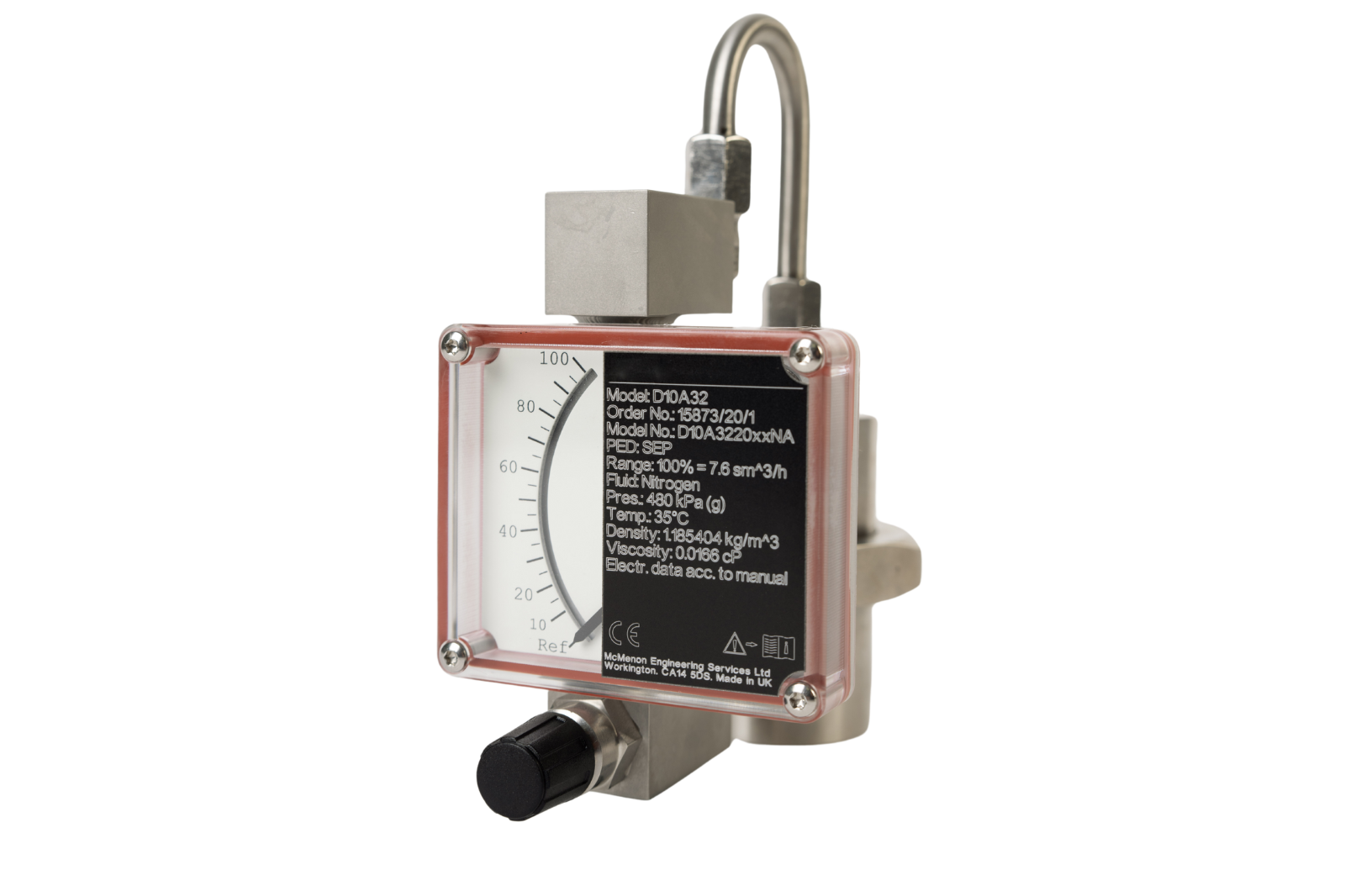

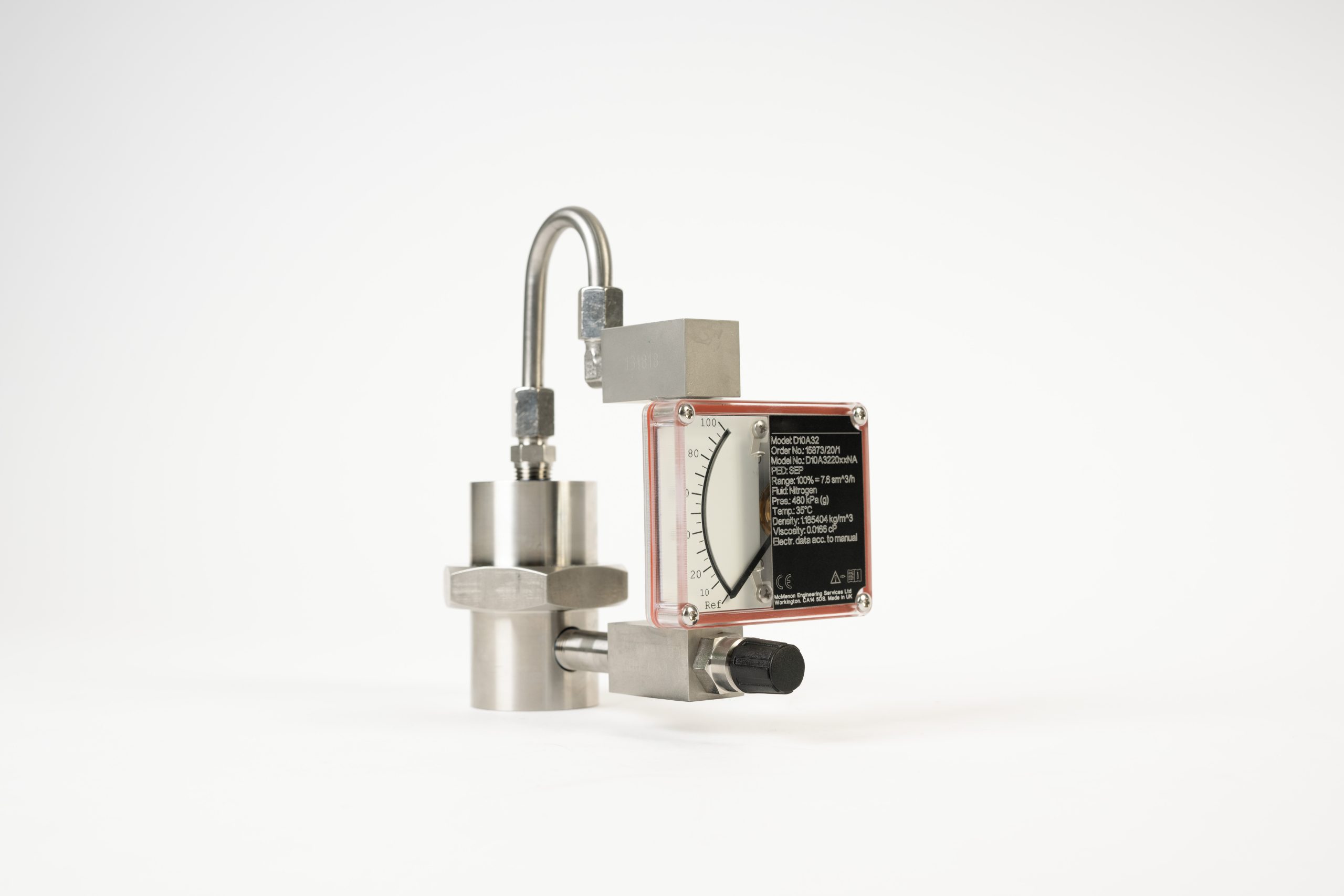

The McMenon FAM3225 and FAM3255 models are vertically mounted armored variable area flow meters tailored for space-efficient, rugged industrial flow measurement. Built for demanding process conditions, these meters deliver stable, visual readings for both liquids and gases, even in confined or mobile system layouts.
The vertical orientation, combined with full metal tube construction, enhances shock resistance and supports operation in corrosive, high-vibration, or high-temperature settings. Available with local or remote indication options, the FAM3225/FAM3255 series delivers performance that aligns with Eleven57’s commitment to precision and access—ensuring critical data can be captured anywhere infrastructure demands it.
Applications: chemical feed loops, fuel and solvent flow monitoring, compact OEM systems, containerized skid units.
Features and Specifications
- Tube diameter ranges from 1/4” to 1”
- Suitable for all liquids, gases and steam
- Accuracy classes : 6 % qg = 50 % in accordance with VDE / VDI 3513
- Repeatability: 0.5% of measured value
- Rangeability: (10:1 turndown)
- Optional Outputs: Analog output 4 to 20 mA or High & Low flow alarm
- Gas damping option to prevent compression oscillation
- Stainless steels housing as an option
- Optional flow control needle valve in the inlet / outlet
- Differential pressure and flow regulator
Solutions and Applications
- Chemical processing and blending
- Skid-mounted flow panels and mobile systems
- Aerospace and defense support equipment
- Remote site fluid monitoring stations
- OEMs requiring compact, armored flow measurement
