Armored-Metal Rotameter FAM544
Armored Variable Area Flowmeter
Starting from:
$1,475.00
Categories:
Ideal for high pressure and temperature resistance….

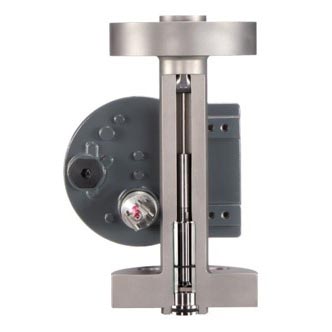

A metal tube variable area flowmeter in a hygienic design, featuring an armored build for durability combined with sanitary connections. It measures flow via a float in a tapered tube and is suited for applications requiring cleanability (e.g. food/pharma).

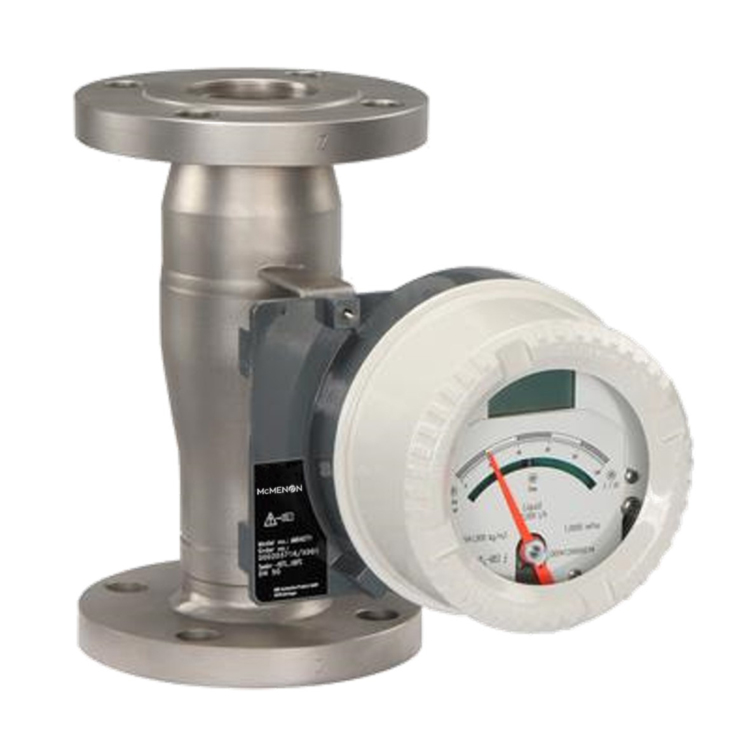

The McMenon FAM544 is an armored variable area flow meter designed for service in high-stress and industrially rigorous environments. Encased in a robust protective housing, the FAM544 offers dependable flow measurement where process visibility, safety, and mechanical resilience are essential.
Its metal construction and protected internals make it ideal for applications where glass-tube meters are unsuitable, including chemical handling, oil and gas systems, and compressed air or gas monitoring. This armored VA meter delivers reliable, repeatable performance while supporting Eleven57’s mission to provide durable, efficient instrumentation that reduces operational risk and extends infrastructure life.
Applications: corrosive fluid handling, pneumatic system monitoring, hazardous area utility metering, mobile skids.
Features and Specifications
Offered with sanitary clamp or other hygienic fittings (e.g. DIN 11851) for ½″ to 4″ sizes. The meter can be sterilized or cleaned in place due to its crevice-free construction. Flow range and performance mirror the standard model: up to ~120 m³/h water, pressures to 100 bar, and temperatures to 400 °C (often limited by gasket materials) – though accuracy remains Class 1.6 in most cases. Polished internals and FDA-compliant seal materials are used for sanitary compliance.
- Indicator: Analog indicator with transmitter 4 to 20 mA, with or without LCD, Visual Scale
- Indicator Housing: Aluminum or Stainless Steel
- Application: Clean liquids, gases and steams
- Mounting: Vertically, in line
- Flow ranges: Water flows/ 7.5 – 14,000 gph / Air flows / 37 – 58,000 SCFH
- Process Connections: 1/2 to 4 in., flanged, threaded
- Rangeability: 10:1 Turndown
- Operating pressure: Up to 100 bar (1450 psi)
- Operating temperature: -20°F Up to 752 °F (400 °C)
- Accuracy:±1.6% (acc. to VDI/VDE 3513-2)
- Repeatability: 0.25% of rate
- Alarms: Slot sensors, up to 2 off
- Tube material(s): Stainless steel, optional PTFE lined, Exotic Metals
- Float material(s): Stainless steel, Other Exotic Metals
Supporting Documents
Product literature (FAM540 series) covers this Type FAM544 hygienic variant, outlining the connection standards and surface finish details.
Solutions and Applications
Ideal for flow measurement in sanitary processes like dairy, brewery, biopharmaceutical, or fine chemicals where hygiene is critical. Applications include monitoring flow of CIP fluids, ingredients, or clean steam in production lines. The hygienic design permits easy disassembly or cleaning and meets industry sanitary standards.
- Power Plants
- Glass & Metals Manufacturing
- Water Treatment Systems
- Furnace Gas Measurement & Control
- Air or Water Cooling
- Power Plants
- Oil & Gas, Upstream Systems
- Analytical Systems measurements
- Low Flow, High Pressure Systems
- Dozing Systems
- Manufacturing and lab utilities
- Fuel and inert gas management systems
- Energy-efficient retrofit projects
Tools and Resources
The manufacturer’s selection tool includes hygienic model options, helping users configure the rotameter (with proper connection and seal materials) for their specific sanitary application.
